The VertiGIS FM Parcel start page is a landing page that compiles key information items, dashboard widgets, and workflow shortcuts for your VertiGIS FM Parcel users.
The legacy VertiGIS FM Parcel start page includes shortcuts to various key workflows in the application as well as dashboard widgets that show work items associated with the user signed in. Alternatively, you can create a custom dashboard, which allows you to add KPI counters, charts, web maps, and lists to the start page
You can access the start page from any page in VertiGIS FM by expanding Land Parcels in the modules panel and clicking Product Start Page or Dashboard.
Parcel Start Page
Navigation Bar
The navigation bar displays on all VertiGIS FM pages. It includes the elements below.
Navigation Bar Elements
Button |
Description |
|
|---|---|---|
|
Return |
Opens to the page you were viewing before you navigated to the current page. |
|
Home |
Opens the VertiGIS FM start page. |
|
Fiscal Year |
Opens a drop-down menu from which you can select the fiscal year. |
|
Language |
Opens a drop-down menu from which you can select the language for the application skin. |
|
Search bar |
Allows you to query VertiGIS FM Buildings for any type of data. |
|
Search |
Opens a drop-down menu that allows you to select a data type to search with on a separate page (Maintenance, Device, Component, Ticket, Defect, Orders, Time-recording, Stock-taking, Activity, Appointment, Note, Document). |
|
Vertical ellipsis |
Opens a drop-down menu that allows you access system information and basic functions: Administration, Turn on tablet mode, Web app, Download mobil + MSI, User manual, System information, Legal notes, Log off. |
Modules Panel
The modules panel, located on the left of each page in VertiGIS FM, lists quick links to all start pages and search pages in your VertiGIS FM implementation. Refer to Modules Panel for more information.
Legacy Start Page
The VertiGIS FM Parcel legacy start page is divided into the sections below.

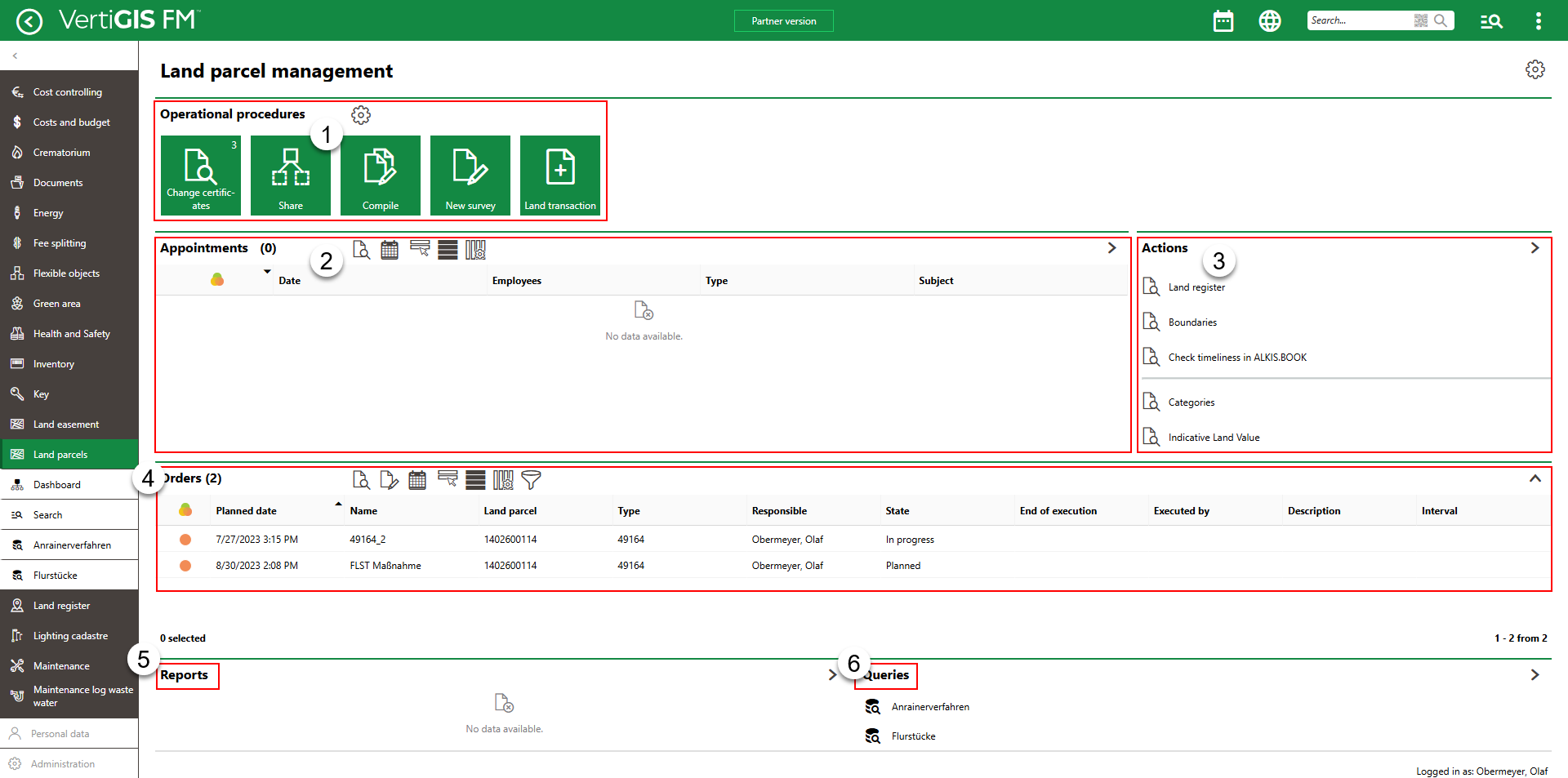

Default VertiGIS FM Parcel Start Page
Legacy Start Page Sections
3.Actions
4.Orders
5.Reports
6.Queries
Operational Procedures
The Operational Procedures section of the VertiGIS FM Parcel start page includes shortcuts to various workflows within the application.
|
Change Certificates•Opens a page that shows a record of all splits and compilations made to land parcels in the system. |
|
Share•Initiates the Split Land Parcel workflow. •Using this workflow, you can divide all of or part of an existing land parcel into one or multiple new land parcels. |
|
Compile•Initiates the Merge Land Parcels workflow. •Using this workflow, you can merge parts of or entire existing land parcels into a new land parcel. |
|
New Survey•Initiates the boundary adjustment (or lot line adjustment) workflow. •Using this workflow, you can edit the Area [m2] property of an existing land parcel. |
|
Land Transaction•Initiates the create land transaction workflow. •Using this workflow, you specify land parcels within a district that are being sold or acquired by your organization in a transaction. After you complete this workflow, you can enter the terms of the sale for each land parcel in the transaction data and, when negotiations are complete, finalize the transaction. |
Appointments
The Appointments section lists the appointments (a call or in-person meeting) scheduled for the user signed in to the application. For an appointment to display in the Appointments section on the start page, the user signed in to VertiGIS FM must be indicated in the Employees field of the appointment form.

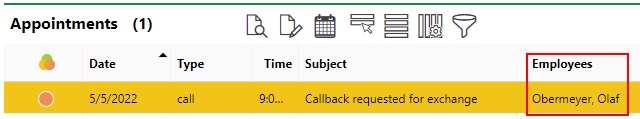

Appointments Section on the VertiGIS FM Maintenance Start Page
Appointments are events that can be scheduled for most data objects in VertiGIS FM and are not to be confused with orders. Because an appointment must be associated with an object (for example, a land parcel), you must create it on the details page for an object. You cannot create them on the search page, like you can for other event-based objects.
Actions
The Actions section lists links to the following VertiGIS FM Parcel tools and resources:
•Land register: access land parcels sorted according to their land registry hierarchy.
•Districts: access land parcels sorted by geography (i.e., by district and municipality), using the cadastral hierarchy.
•Indicative land value: store land values of your land parcels' jurisdictions so that they can be applied to land use valuations.
Actions Section Links
Orders
The Orders section lists orders associated with a land parcel that are assigned to the user signed in to the application.
Refer to Orders for more information.
Reports
The Reports section lists download links for the reports the system administrator has made available on this page for the role your user has been assigned. Clicking the link generates the report. Refer to the Report and Query Permissions administration topic for more information.

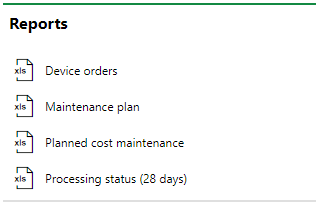

Reports Section
You can generate reports using other data on the search page. Refer to Generate Reports for more information.
Queries
The Queries section lists links to the search queries the system administrator has made available on this page for the role your user has been assigned. Refer to the Report and Query Permissions for more information.
Queries Section
Refer to Save a Query for instructions on how to create a query.
Dashboard Customization
As a system administrator, you can create a customized dashboard for the start page for each VertiGIS FM product and module included in your license. Tools in the dashboard customization feature allow you to design a dashboard that conveys important information to your users, using your own live VertiGIS FM data associated with any assets, data objects, and properties in your system.

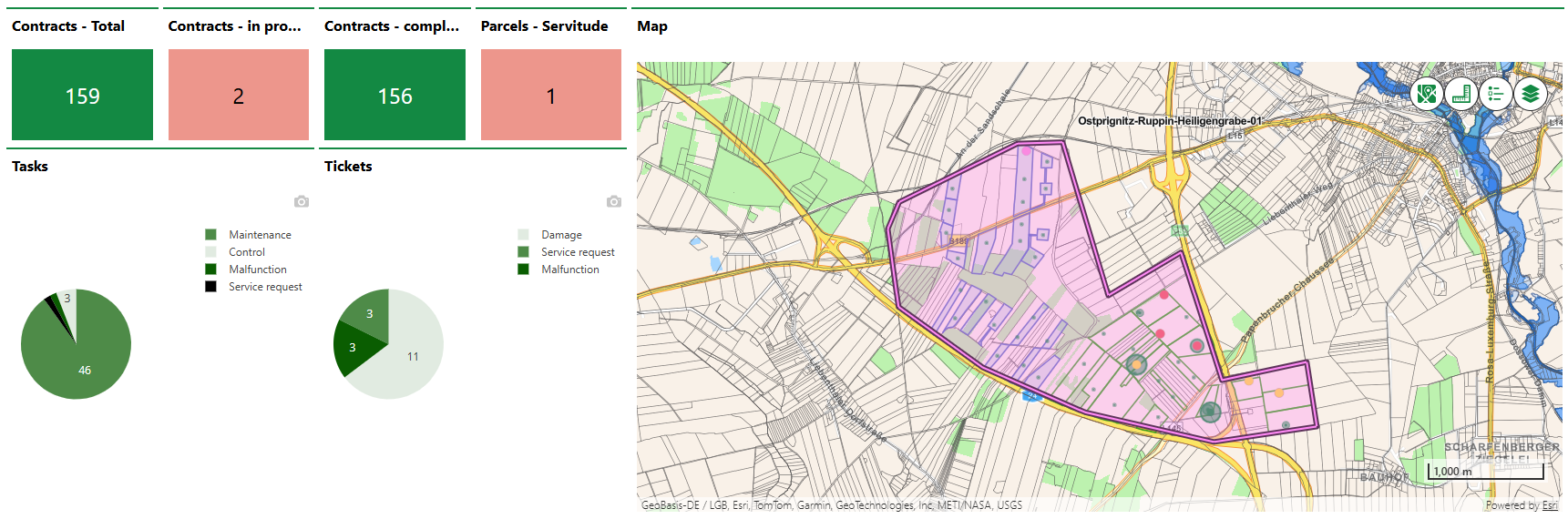

Customized Dashboard with Characteristic Values, Charts, and a Map
Dashboard objects you can add to your start page include KPI metrics, charts, lists, and maps. You can also include any of the template sections shown on the default start page to your customized dashboard.
When you create a custom dashboard, you can add any of the items below to your start page.
Dashboard Object Presentation Types
Presentation Type |
Description |
|---|---|
A counter that reflects the quantity of a data object (e.g., the number of buildings or devices) in the VertiGIS FM database, or the sum or average of a property with a numeric values across all data objects of a given type (e.g., the total floor area across all buildings in the system). |
|
A line, bar, or circle (pie) chart that visualizes data associated with a VertiGIS FM data object. |
|
A list of data objects of a given type (e.g., devices, buildings, or work orders), with their properties sorted into columns to allow your users to search and filter them on the dashboard. |
|
A VertiGIS Studio web map that has been integrated with your VertiGIS FM environment. You can configure it to display a layer mapped to a data object in VertiGIS FM. |
|
An icon image and text that links to an external application or website. |
|
Default data objects, like Actions, Operational Procedures, and task-based objects associated with the user signed in to VertiGIS FM. |
To access the dashboard customization page, click the gear icon (
) at the top of the start page whose dashboard you want to customize.
Link to Dashboard Customization Page
Refer to Dashboard Customization for instructions on how to add custom objects to your dashboard.
