This topic outlines how to add, edit, and delete a individual lock in VertiGIS FM.

All individual locks must exist within a locking system.

This topic outlines how to manually add individual individual locks in VertiGIS FM. You can alternatively import your own internal record of individual locks into the VertiGIS FM database using a CSV or XML file. This option is ideal for adding large quantities of individual locks simultaneously (for example, to establish an initial record of individual locks in the VertiGIS FM database).

To Add a Individual Lock to a Locking System

You can add a individual lock to a locking system on the locking system's details page.

To Add a Individual Lock to a Locking System

1.Navigate to the details page for the locking system you want to add a individual lock to.

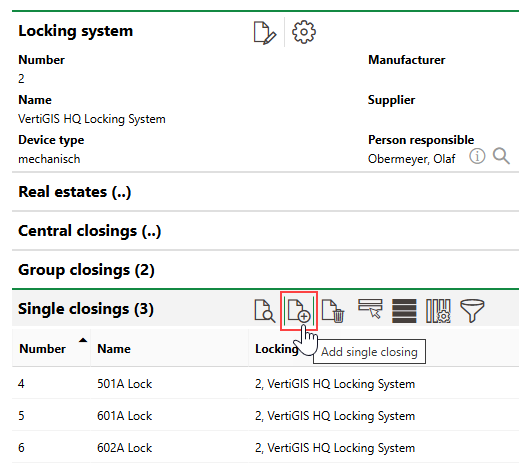

2.Expand the Individual Locks section and click the Add () icon.

3.Enter a Name for the new individual lock and a Number to identify it by.

4.Click Save or Save and Close.

Edit a Individual Lock

You can edit a individual lock on its details page.

To Edit a Individual Lock

1.Navigate to the details page for the locking system that contains the individual lock you want to edit.

2.Click the Edit () icon.

3.Edit the individual lock's details as required.

4.Click Save or Save and Close.

Delete a Individual Lock

You can delete a individual lock on the details page for its locking system.

To Delete a Individual Lock

1.Navigate to the details page for the locking system whose individual lock you want to delete.

2.Expand the Individual Locks section.

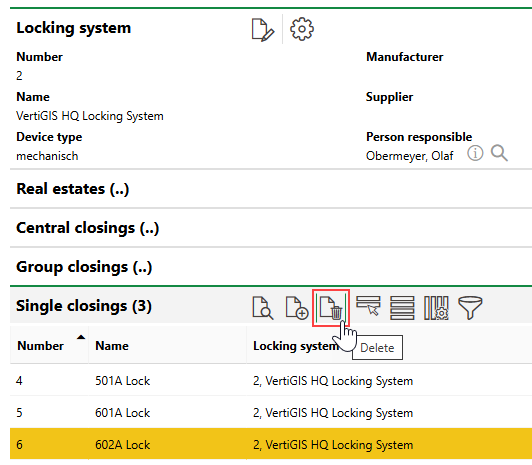

3.Select the individual lock you want to delete and click the Delete () icon.

4.Click OK.

You cannot delete a individual lock that has a key assigned.
