Checklist items are tasks or conditions in a checklist a user must mark as checked or unable to be checked when they complete a checklist task. Depending on how each task is configured, they can require the user to enter additional information as they complete the checklist.In VertiGIS FM Parcel, checklist items can simply require the user to mark an item as Ok or Not ok when they complete the checklist but can also include data entry components like conditions and flexible properties.

Add Items to a Land Transaction Checklist

After you have saved a new land transaction checklist, you can add items (individual tasks or conditions that must be checked) to it.

To Add Items to a Land Transaction Checklist

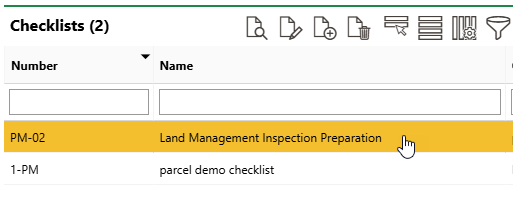

1.In the Land Transaction Checklists section on the checklist administration page, double-click the checklist to which you want to add tasks.

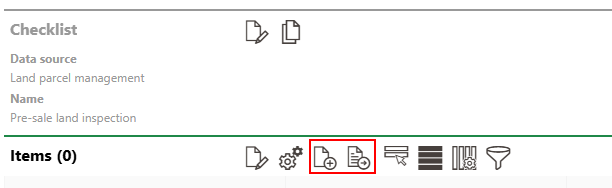

2.Expand the Items section and do either of the following:

▪click the Add () icon to create a new item for the checklist. Enter a name for it in the Name field and attach any data objects in the appropriate sections, and then click Save and Close.

Select the Required check box if you are adding a checklist item whose completion is mandatory.

▪click the Additional Editing () icon to assign existing items on other land parcel checklists to this checklist. Under Assign Items, click the Add () icon, and then double-click the item you want to add. Assign as many items as necessary, and then click Save and Close.

3.Repeat step 2 until as required to add additional items to the checklist.

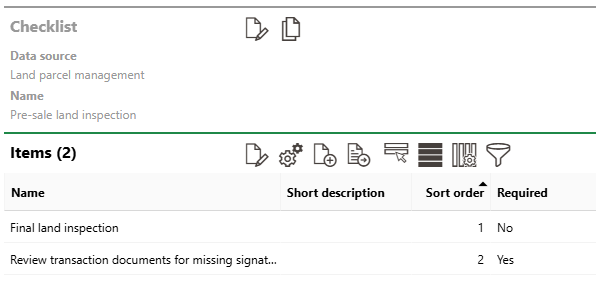

Checklist with Items

Add Items to an Asset Checklist in VertiGIS FM Parcel

After you have saved a new asset checklist, you can add items (individual tasks or conditions that must be checked) to it.

To Add Items to an Asset Checklist

1.In the Checklists section on the checklist administration page, double-click the checklist to which you want to add tasks.

2.Expand the Items section and do either of the following click the Add () icon.

3.Enter a name for it in the Name field and attach any data objects in the appropriate sections, and then click Save and Close.

Select the Required check box if you are adding a checklist item whose completion is mandatory.

4.Repeat steps 2-3 as required to add additional items to the checklist.

Add Conditions to Checklist Items

Conditions allow or require users who complete a checklist to select an option from a predefined list in a drop-down menu based on whether they mark a checklist item as Ok or Not ok.

For example, a checklist item could require that users ensure an asset is in good working condition. If they select Not ok to record that it is not, you could require the user to select an option from a drop-down menu that

Checklist Item with a Condition

To create a checklist condition, you must create a catalog that stores the options you want your users to choose from, attach the catalog to the checklist item you want to associate it with, and then outline the conditions under which users can (or must) select an option from the catalog.

To Add Conditions to a Checklist Item

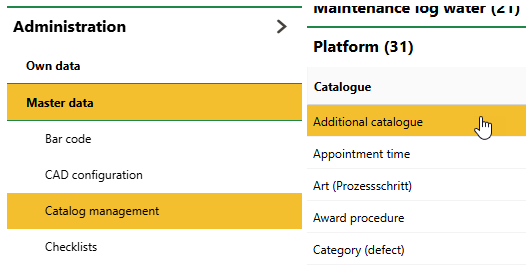

1.Navigate to the catalog administration (Administration > Catalog Management). Expand Platform and double-click the Additional Catalogue entry.

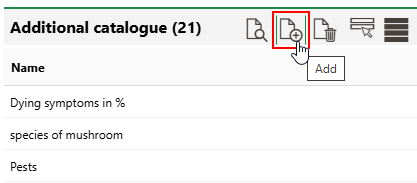

2.Click the Add () icon.

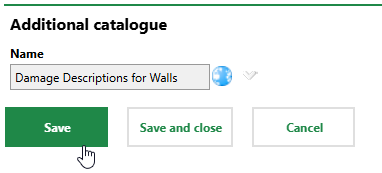

3.Enter the name of the set of condition options and click Save.

4.In the Catalogue Entries section, click the Add () icon.

5.In the Name text box, enter the text for one of the options you want users who complete the checklist to select from the drop-down menu. Enter a number in the Sorting Position text box to indicate the order in which you want it to appear releative to the other options.

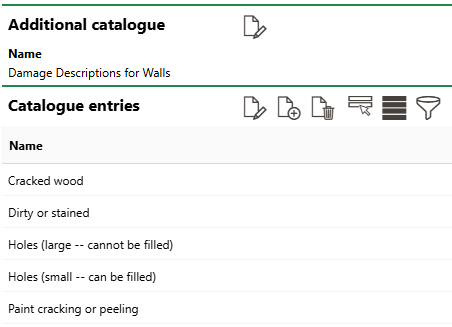

6.Repeat steps 4-5 until the catalog includes entries for all the options you want users to be able to select from the drop-down menu.

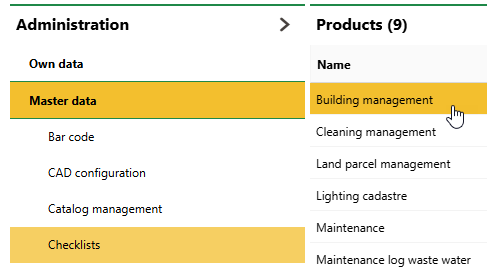

7.Navigate to the checklist administration page (Administration > Master Data > Checklists) and double-click the VertiGIS FM product or module associated with the checklist whose items you want to add a condition to.

8.In the Checklists or Order Checklists section, double-click the checklist whose items you want to add a condition to.

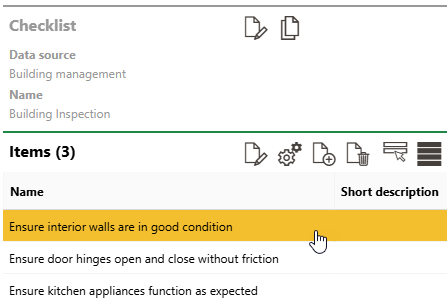

9.Expand the Items section and double-click the checklist item to which you want to add a condition. Alternatively, you can select the item and click the Edit () icon. If the checklist does not have any items yet, add one.

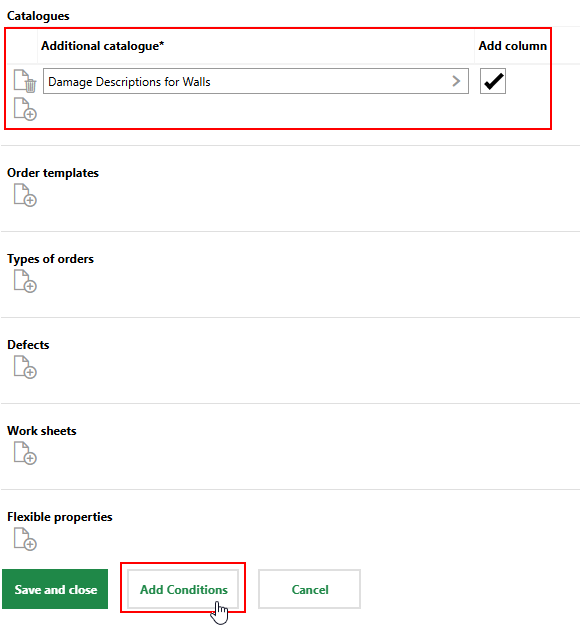

10.Under Catalogues, click the Add () icon. Select the catalog you created in steps 1-6 of this procedure and click Apply, or double-click the catalog.

11.Scroll to the bottom of the page and click Add Conditions.

Select the Add Column check box if you want the drop-down menu to appear in its own column in the checklist. Otherwise, users who complete the checklist will access the drop-down menu in the Catalogue Entry column.

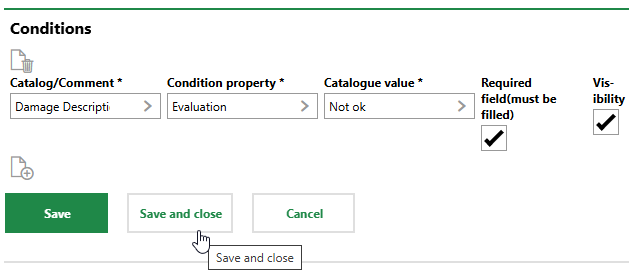

12.Under Conditions, click the Add () icon.

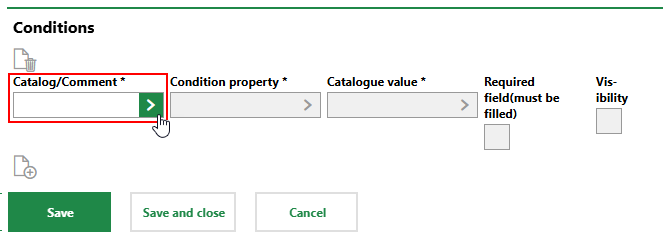

13.Click the > button in the Catalog/Comment menu, select the additional catalog you applied to the checklist item in step 9, and click Apply.

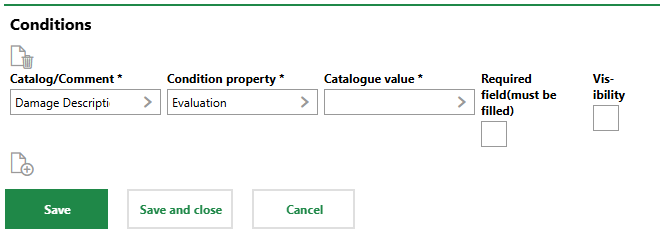

14.Click the > button in the Condition Property menu, select Evaluation, and click Apply.

15.Fill out the remainder of the condition properties as required. Refer to Checklist Condition Details for descriptions of each menu.

16.Click Save or Save and Close.

Checklist Condition Details

In the condition created in the procedure above, the condition is added to the "Ensure interior walls are in good condition" checklist item, the Catalogue Value is Not ok, and the Required and Visibility check boxes are both selected.

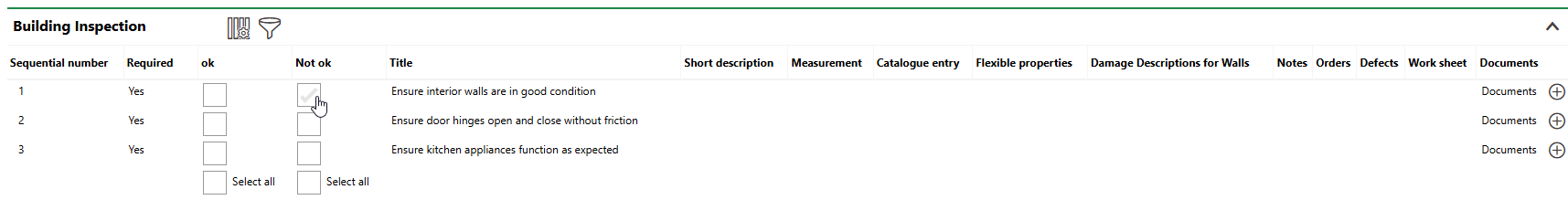

Completing a Checklist Item with a Condition (1/3)

This means that if a user completing the checklist selects Not ok for the checklist item, the menu with the catalog entries will appear.

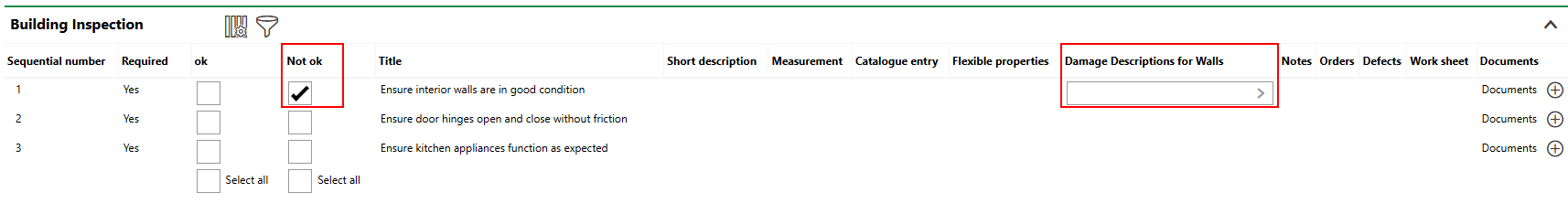

Completing a Checklist Item with a Condition (2/3)

Because the Required check box is selected, the user cannot select Not ok and save the checklist without selecting an option from the Damage Description for Walls menu.

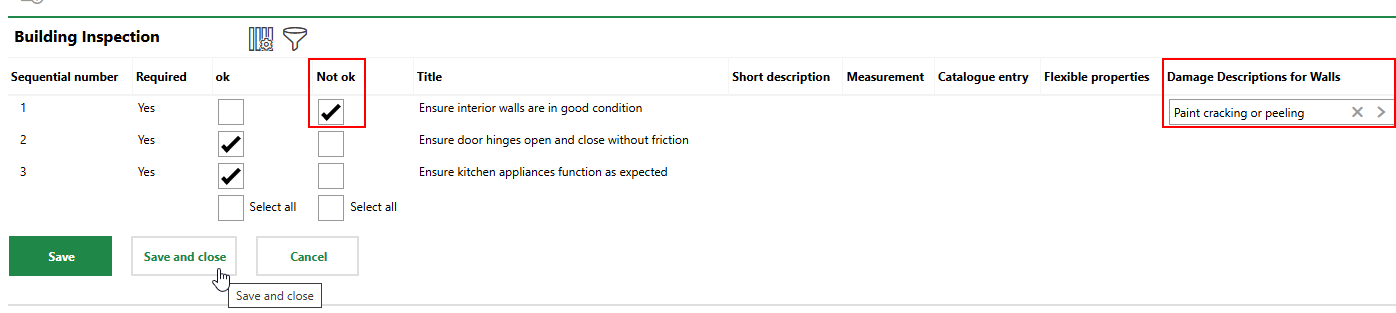

Completing a Checklist Item with a Condition (3/3)
