This topic outlines how to add, edit, and delete vehicles from your database.

Add a Vehicle

Each vehicle you manually add to the system must be added to a vehicle type in the Vehicle Structure.

You can add a new vehicle any of three ways:

•by adding the vehicle on the vehicle type's details page.

•by adding it on the Fleet Management search page and selecting an existing vehicle type in the system in the process.

This topic outlines how to manually add, edit, and delete individual vehicles in VertiGIS FM. You can alternatively import your own internal record of vehicles into the VertiGIS FM database using a CSV or XML file. This option is ideal for adding, editing, or deleting large quantities of vehicles simultaneously (for example, to establish an initial record of your vehicles in the VertiGIS FM database).

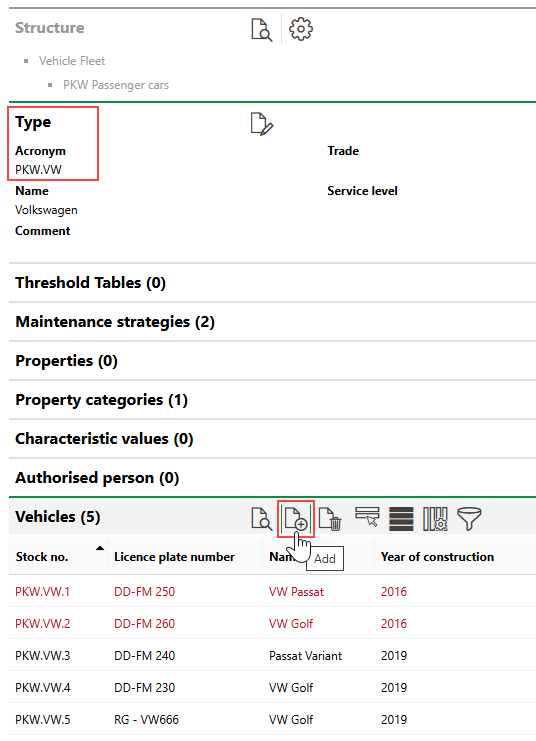

To Add a Vehicle on the Vehicle Type Details Page

1.Navigate to the details page for the vehicle type you want to add a vehicle to.

2.Expand the Vehicles section and click the Add () icon.

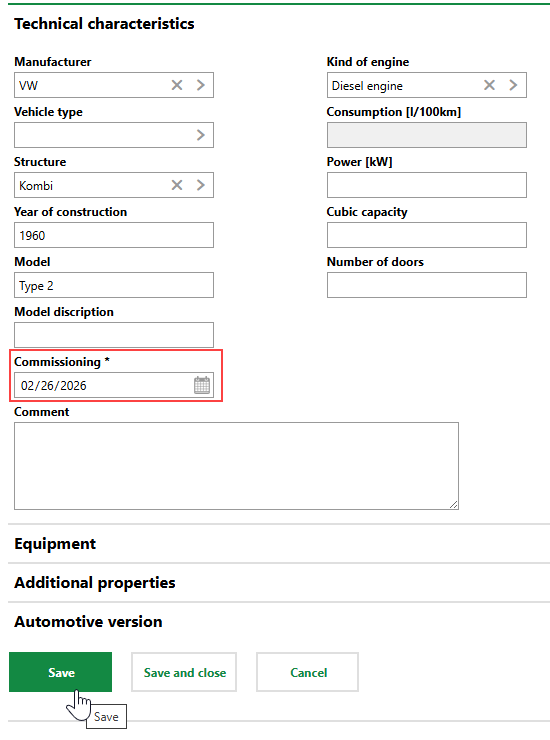

3.Enter the new vehicle's details in the corresponding information fields. At minimum, you must select a date in the Commissioning field, under Technical Characteristics.

Refer to Vehicle Details for descriptions of all form fields.

4.Click Save or Save and Close.

To Add a Vehicle on the Search Page

1.Navigate to the Fleet Management search page.

2.Under Objects, click Vehicle.

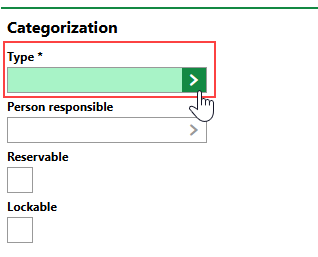

3.In the Categorization section, click the > icon in the Type menu.

4.Select the existing vehicle type to which you want to add the new vehicle and then click Apply, or double-click the vehicle type.

5.Enter the new vehicle's details in the corresponding information fields. At minimum, you must select a date in the Commissioning field, under Technical Characteristics.

VertiGIS FM will assign the new vehicle a Stock no. after you save the form, based on the vehicle type you selected in step 4.

Refer to Vehicle Details for descriptions of all form fields.

6.Click Save or Save and Close.

Edit a Vehicle

You can edit the core properties of an existing vehicle, including the ones stored in the Commercial Characteristics, Technical Characteristics, and Equipment tabs.

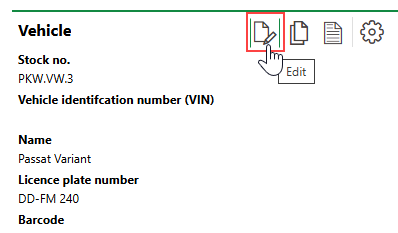

To Edit a Vehicle

1.Navigate to the details page of the vehicle you want to edit.

2.Click the Edit () icon.

3.Edit the vehicle's properties as required. Refer to Vehicle Details for field descriptions.

4.Click Save or Save and Close.

Batch Edit Vehicles

You can perform a batch edit on vehicles to edit the Name, Person Responsible, Reservable, and Lockable properties, or any properties stored in the Commercial Characteristics, Technical Characteristics, and Equipment tabs of two or more vehicles in one action. Vehicles selected in a batch edit do not need to be from the same vehicle type.

You can perform a batch edit on the Fleet Management search page.

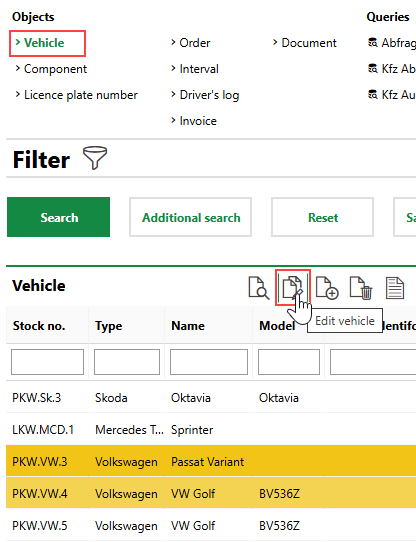

To Batch Edit Multiple Vehicles

1.Navigate to the Fleet Management search page.

2.Under Objects, click Vehicle.

3.In the search grid, select the vehicles you want to edit and click the Edit Inventory () icon.

Press the ctrl key on a Windows keyboard to select items in the search grid that are not directly on top of or beneath each other.

4.For the property or properties whose value(s) you want to batch edit, select the check box and select or enter the new value.

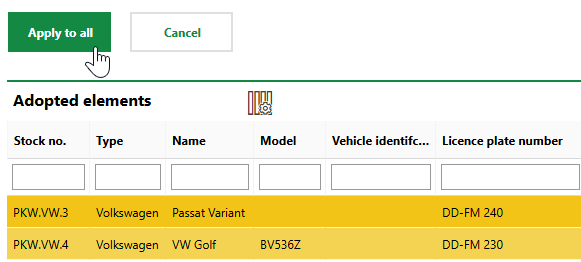

5.Click Apply to All. Affected vehicles are listed in the Adopted Elements section.

The updated properties are assigned to the selected vehicles.

Delete a Vehicle

You can delete a Vehicle on the details page for the vehicle type that contains the vehicle, or on the Fleet Management search page.

If the vehicle has associated orders, the confirmation dialog that opens in the deletion procedure explains that the associated orders will also be deleted.

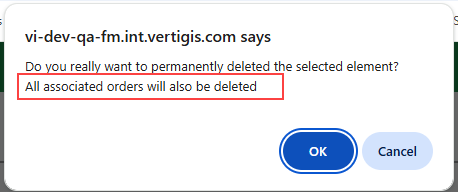

Deletion Confirmation Message

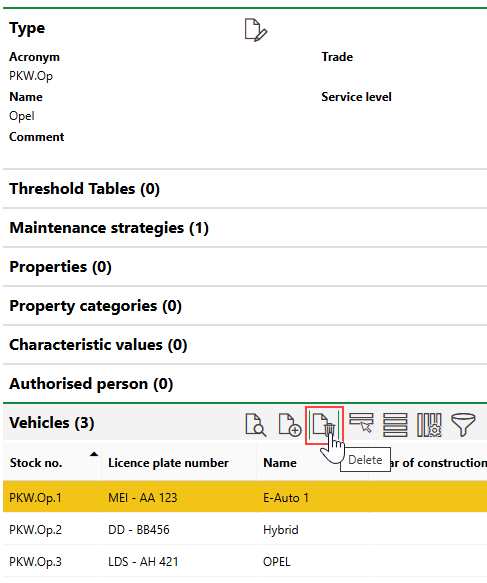

To Delete a Vehicle on Its Vehicle Type Details Page

1.Navigate to the details page for the vehicle type that contains the vehicle you want to delete.

2.Expand the Vehicles section and select the vehicle you want to delete.

3.Click the Delete () icon.

4.Click OK.

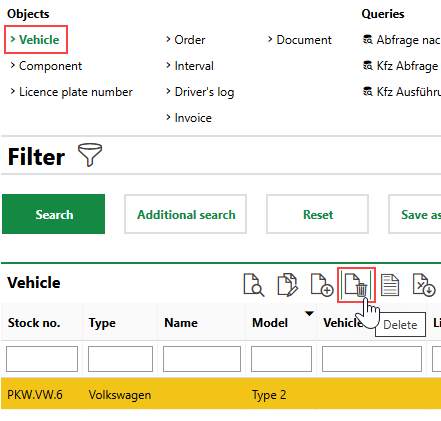

To Delete a Vehicle on the Search Page

1.Navigate to the Fleet Management search page.

2.Under Objects, click Vehicle.

3.Select the vehicle you want to delete and click the Delete () icon.

4.Click OK.
