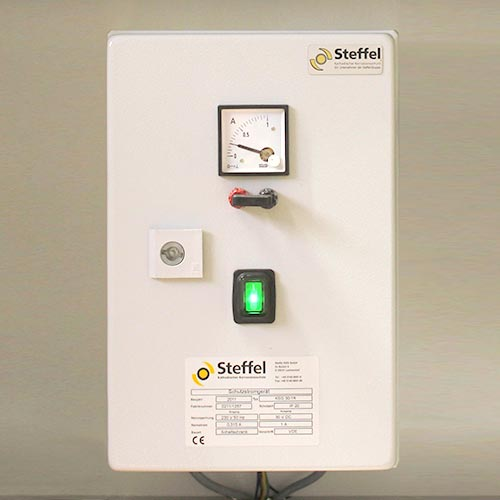

Rectifier, direct current power source, protective current device

DC power source and measurement of the supplied voltage and current

Can be connected to earth to dissipate stationary, temporary and transient overvoltages to earth

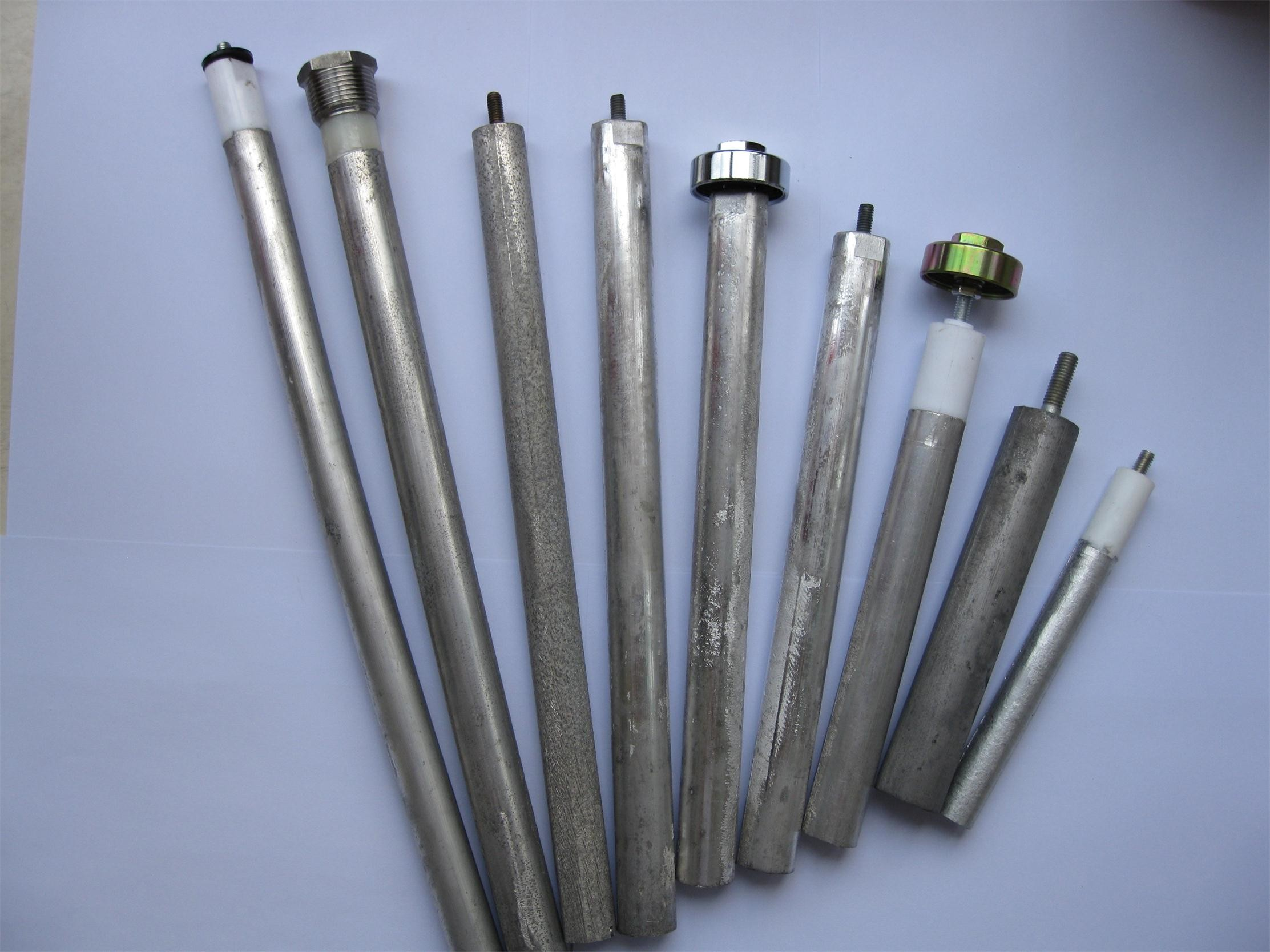

Sacrificial anode, as a source of cathodic protection, anode field

Material erosion occurs at the sacrificial anode.

The sacrificial anode is connected via the ProtectionCable and the cable network (only one cable per anode). The asset type can also be used for an anode field. Alternatively, the individual anodes of an anode field can be recorded and connected to each other with an anode cable.

The sacrificial anode is connected to the MeasuringCable and the measuring system.
