CustomerMeter(Device)

CustomerMeters can be managed both spatially and non-spatially. As objects with geometry, they can either be linked to the connection point via an internal service line or through a node-to-node relationship. In the case of the node-to-node relationship, the implicit connection can only be displayed as a line on the map using a specific function.

If the meter is not placed on the map, it can be associated with the connection point as an object via a "Containment Association".

Multiple CustomerMeters can be linked to a single connection point.

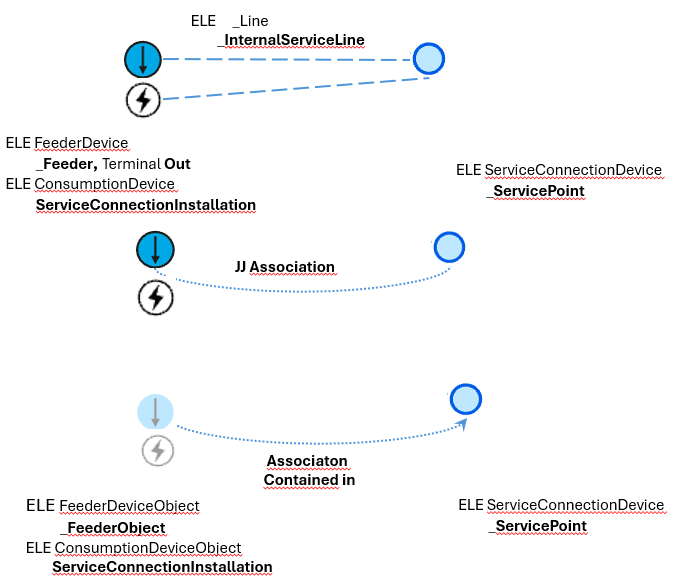

Decentralized Feeders and Consumer Installations (private)

Feeder (Station)
