Optical Distribution Frames (ODF), also known as Patch Panels, act as mechanical splices, typically within a rack or wall mounted. ODFs are considered passive devices and are typically not powered. Many different connector types can be used in ODFs.
|
|
|
|

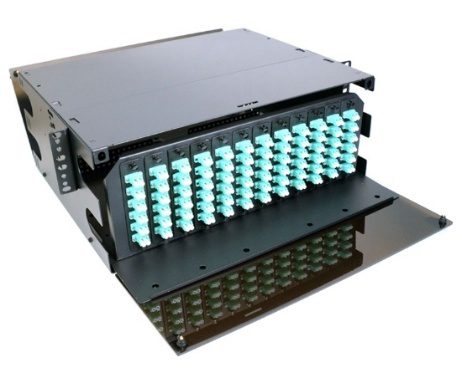

Rack mounted ODFs can consume one or more rack units and have anywhere from 12 ports to 96 or more, typically in 12 port increments. Connector types can vary.
|
|
|
|
|
|

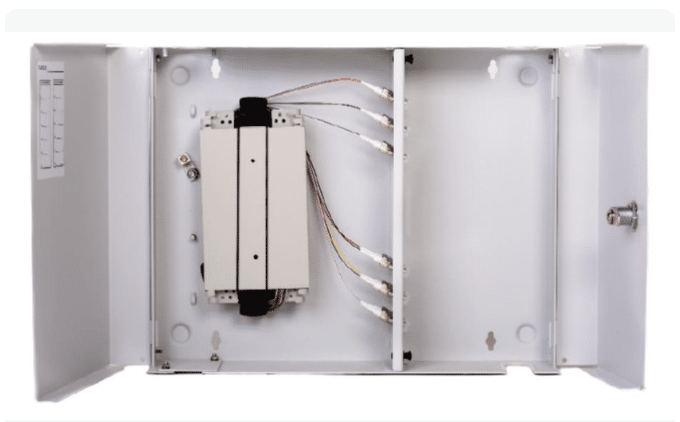

Typically used in smaller installations at customer sites.
|
|
|
|
|
|

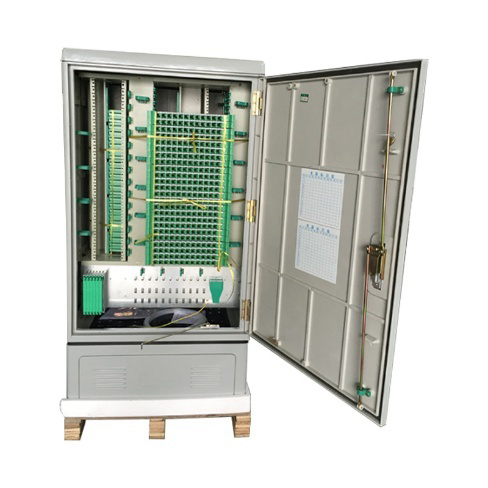

Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network.
|
|
