Connection point of the protective cable

Connection point on the cable network element protected by the KKS system (solder joint of the cable to the network element)

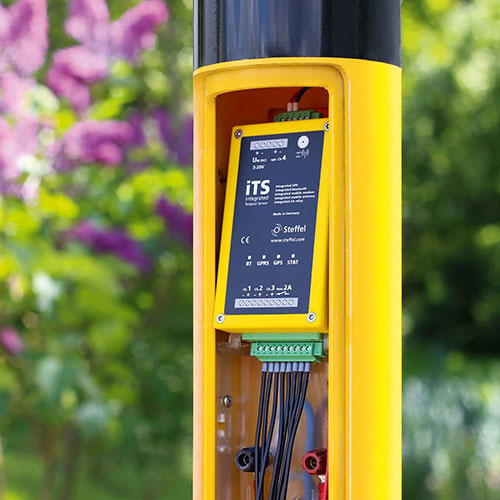

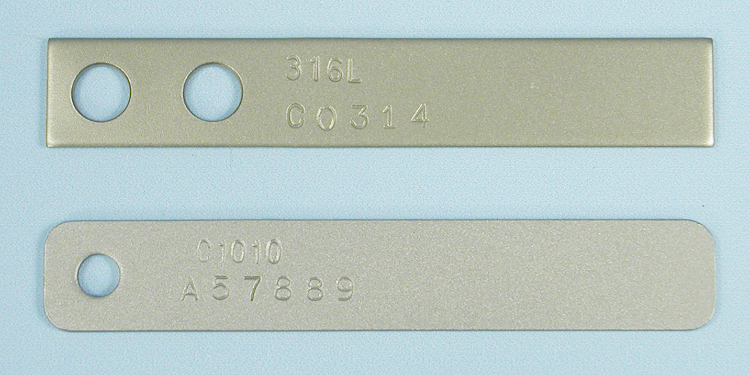

Measuring point, measuring column, measuring box, measuring station

Measuring point, measuring station, ground box. Location where the measuring contacts can be accessed.

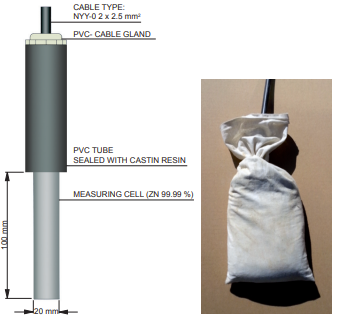

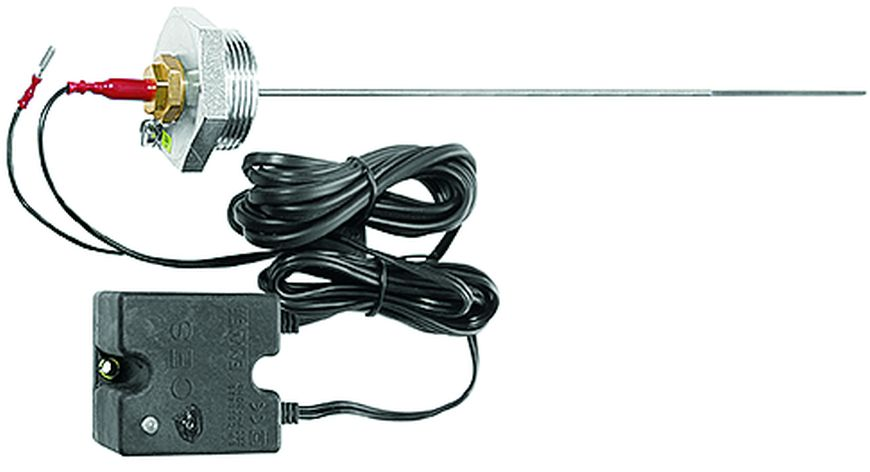

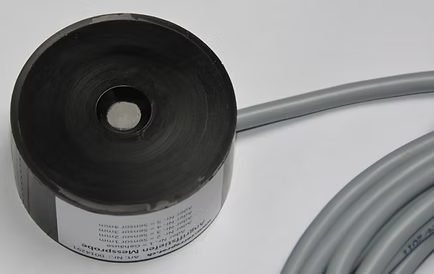

Reference electrode

Continuous reference electrode for controlling the protective current device.

The reference electrode provides a stable, known electrochemical potential that hardly deviates over time. By comparing the voltage between the pipeline and the reference electrode, the polarisation potential of the protective elements in the ground can be determined. From this, it can be concluded whether the protective elements are still sufficiently protected or whether the current supply to the rectifier should be adjusted. Permanent reference electrodes are buried near the protective element and connected to the control system. Portable electrodes are used for measurements and must be placed consistently (as close as possible to the protective element, but not in the way between the anode and the protective element).

Cable connection (sleeve)

Cable connection point functioning as a sleeve. Can connect two cables together.

Connection to stray current source

Location of an external stray current source. A drainage cable can connect this stray current source (e.g. railway track) to the pipeline to enable the discharge of stray currents.
