Example

Description

Roof stand

Small poles are mounted on roofs to serve as overhead line poles. In addition to the house entry through the roof stand, these can also be used for further networking.

Example

Description

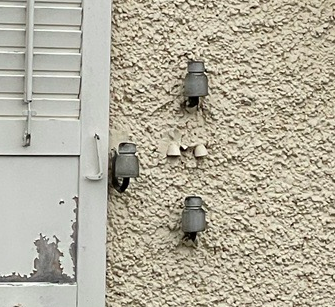

Facade connection (Nico Hauri, 2022)

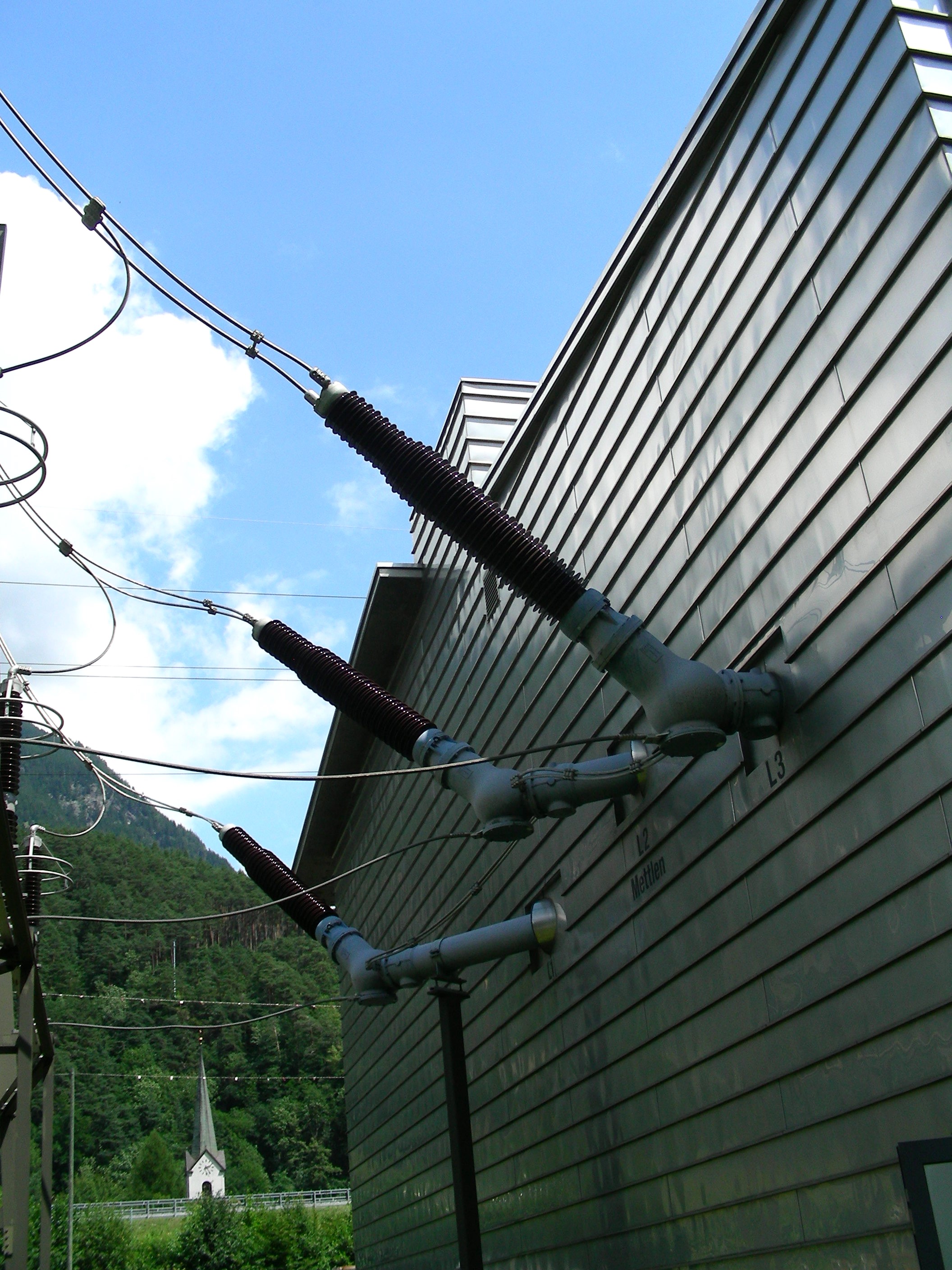

Wall bushing overhead line (Swissgrid internal 2021)

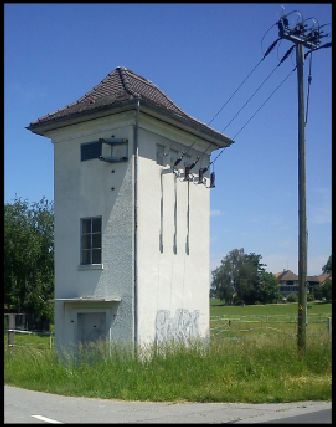

Transformer station with bushing (https://www.kuh-promenade.ch/Moetschwil.html)

Wall bracket

These were previously used on transformer towers (DE) as well as on facades of residential and commercial buildings.
