Andere

Kombi-Armaturen (z.Bsp Absperrarmatur und Entlüftung), projekt- oder kundenspezifische Bauteil-Zusammensetzung (Sonderanfertigung), oder auch Bauteilgruppe, die nicht mit den anderen Assettypes abgedeckt werden kann.

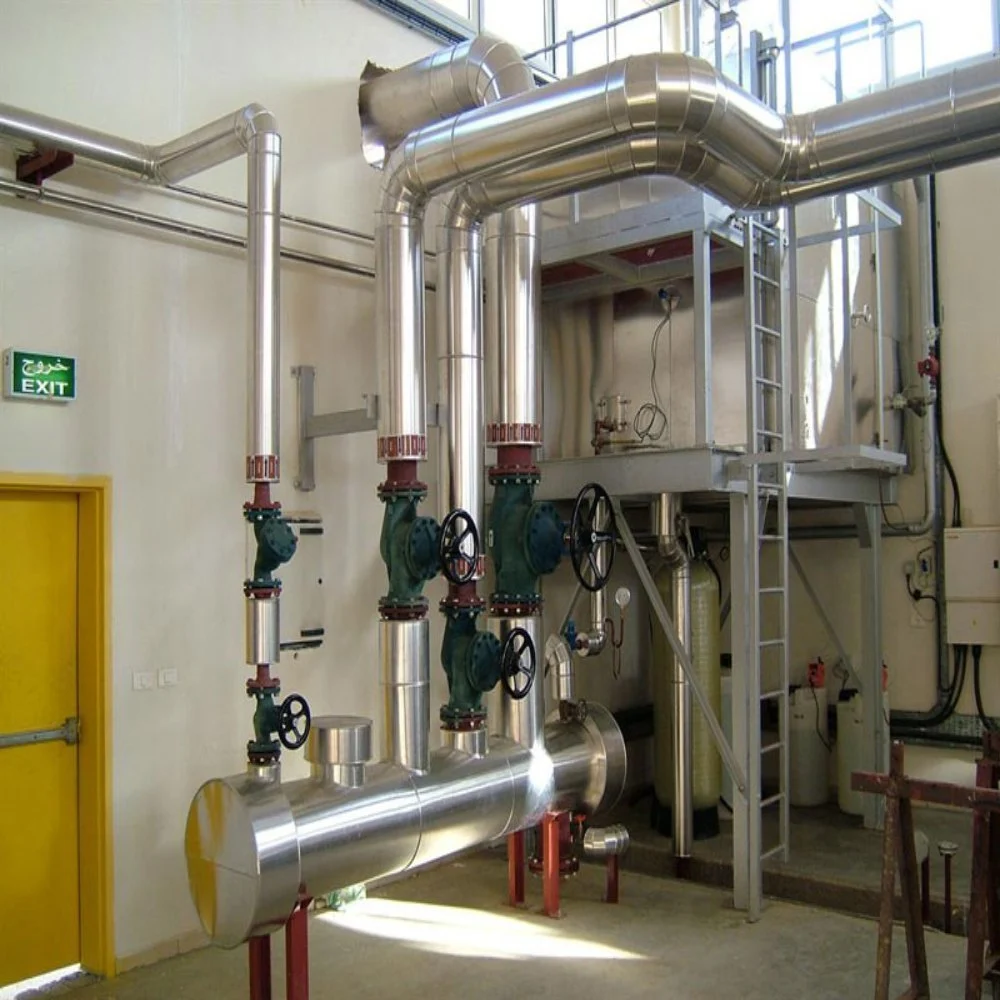

Riser

This asset type is used to display where risers are located in a plan. Details of the components on the riser can be stored as the content of the assembly.

The riser can contain several consecutive elements on the vertical pipes. The elements located on the riser must be recorded in the correct sequence in 3D coordinates and connected to the pipes. The “riser pipe” asset type acts as a “container” that enables a detailed view of the connections it contains. It ensures that the plan remains legible and tidy even at larger scales by covering overlapping network elements.

Measuring point

Location where measuring devices are used. A measuring point can contain several measuring units (SensorUnit, SensorUnitObject) and refers to a structure.
