The value in the domain name column can always be used for Esri domains. A record must be created for each existing code except if the code 0 is (unknown). If the value of code 0 is something other than (unknown), a record must also be created.
Value_<attributedomainname><_attributedomaincode>
Part of the name |
Values |
Value_ |
Fixed text. This makes it clear in configuration forms that it is a case of a choice-list entry |
attributedomain name |
Name of the Esri attribute domain. |
attributedomain code |
Value of the coded value in the attribute domain |

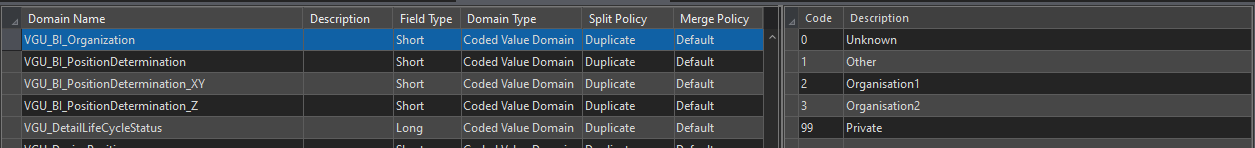

Examples:
•"Value_VGU_BI_Organization_1": "Other",
•"Value_VGU_BI_Organization_2": "Organisation1",
•"Value_VGU_BI_Organization_3": "Organisation2",
•"Value_VGU_BI_Organization_4": "VertiGIS GmbH",
•"Value_VGU_BI_Organization_99": "Private",
Exceptions:
1.A general entry should be created for code zero for all choice lists.
"Value_VGU_Unknown": "Unknown",
2. If the domain name starts with +_*_columnname (+ = network name which can be different, * = number which can be different), this prefix "+_*" is replaced with UN.

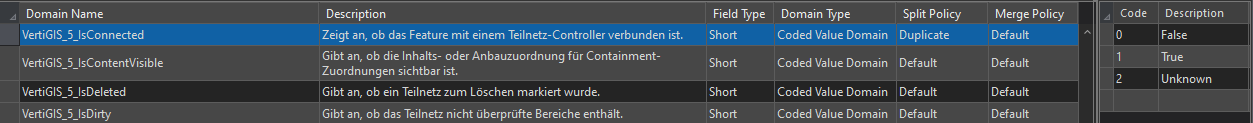

In the example below, the network name VertiGIS, and UN number 5)-> VertiGIS_5_ is replaced by UN.
A record must be created for each existing code except if the code 0 is (unknown). If code 0 is something other than (unknown), a record must also be created.
Examples:
•"Value_UN_IsConnected_0": "no",
•"Value_UN_IsConnected_1": "yes",
•"Value_UN_IsConnected_2": "Unknown",
